GSPREMIER® External Laptop Battery Charger for HP MO06 MO09 MORE 8 PINS (BATTERY IS NOT INCLUDED)
MO06 MO09 672412-001 M6-1105DX HSTNN-YB3N HSTNN-LB3N M6-1205DX HSTNN-UB3N M7-1015DX M009 TPN-W106
battery and those compatible with following part No.:|
|
Technical Details
- Input: 100-240V, 50/60Hz
- Charger for 10.8V or 11.1V AND 14.4V or 14.8V Laptop Battery Interface: 8 pin Color: Black
- Output Voltage: 20V / 2.5A
- Condition: Brand New
- 6 months limited warranty
- GOODSAVERSNET External Laptop Battery Charger allows you to charge your laptop battery outside of your computer. You can simply plug directly into your battery connector to charge your battery anytime, anywhere. Most laptop batteries require about 4 hours to charge completely, but the time can vary depend battery capacity. Charging an extra laptop battery to take with you will let you have peace of mind to work twice as long as you want to.
- The following information will help to ensure that you get the right unit and this GOODSAVERSNET External Laptop Battery Charger will can fit your 10.8V or 11.1V and 14.4V or 14.8V Laptop Battery. Buy This to ensure quality products! 6 months warranty
|
|
||||
A set of the product includes: a charger, a connecting wire, and AC POWER CORD.
Basic Parameters
Model No.: GOODSAVERSNET
Dimensions: 128*51.5*33 mm
Color: black
Weight: 200g
Input Voltage: AC 100~240V
Maximum output power: 40W
Standby power consumption: <1W
Output voltage: DC 7.2~14.8V
Maximum output current: 2.5A
Warranty: 6 MONTH
Length of charging time: 6 hours MAX(Different charging time for batteries of different capacity)
Safety Standard: CE standard (UL, CB, GS, T-Mark etc. )
Charging Instruction
1. Normal Working Condition:
Four charging lights(GREEN LED LIGHT) and the power light (RED LED LIGHT) go on after switching on.
The charger acquires the battery information from the battery protective plate, and then starts charging.
Charging LED STATUS Capacity Percentage
All the four LEDs blink circularly < 100%
All the four LEDs are on =100%
2. Activate Charging Condition:
The four charging lights blink synchronously after switching on. It might be the charger is not connected well with the battery. Users should check and confirm the device is connected correctly.
One minute later, if the charger enters normal working condition, it means the battery has been activated.
One minute later, if the four charging lights still blink synchronously, it means the battery has been damaged and can not be repaired.
Cautions:
1. To avoid explosion and danger, damaged batteries and leaking batteries are not allowed.
2. This product is good for indoors. Do not expose and use it in outdoors.
3. Do not drop or put something heavy on it. Children are not allowed to use the product without adults.
4. The operation temperature must be 0~40 C
5. Do not keep the product under the direct rays, beside the hot devices or in other hot environment.
6. Do not disassemble or assemble the product.
Please send us the laptop models and part numbers AFTER ordering

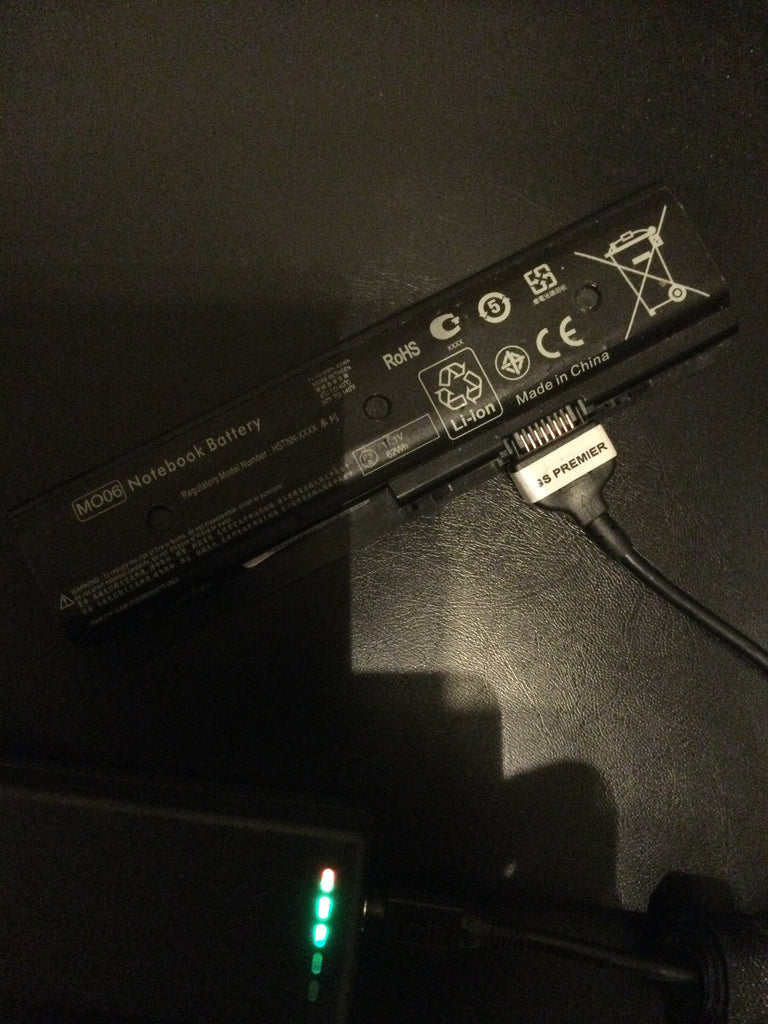

THOSE PHOTOES AS REFERENCE TO SHOW HOW TO CONNECT WIRE AND BATTERY
THIS KIT DOES NOT INCLUDE HP BATTERY
| Please ensure the battery that you are going to charge by GOODSAVERSNET external charger is compatible with following laptop's brand, model number and battery's part number. |
Compatible Replacement Parts: HP PAVILION 807611-131, 807611-141, 807611-421, 807611-831, 807612-131, 807612-141, 807612-421, 807612-831, 807956-001, 807957-001, HS03, HS03031-CL, HS04, HS04041-CL, HSTNN-LB6U, HSTNN-LB6V
Fits Models: HP PAVILION 14g, 14q, 15g, 15q, 14-ac000, 14-ac072TU, 14-ac073TU, 14-ac074TU, 14-ac080no, 14-ac100, 14-ac100na, 14-ac100nd, 14-ac100ne, 14-ac100nia, 14-ac100nl, 14-ac100nv, 14-ac100nx, 14-ac100ur, 14-ac101la, 14-ac101na, 14-ac101ne, 14-ac101nf, 14-ac101ng, 14-ac199ur, 14-af000, 14-af001AU, 14-af100AU, 14-af117AU, 14-af117la, 14-af118AU, 14-af119AU, 14-af120AU, 14-af121AU, 14-AF180NR, 14g-ad000, 14g-ad001TU, 14g-ad002TX, 14g-ad003TX, 14g-ad007TX, 14g-ad100, 14q-aj000, 14q-aj001TX, 14q-aj002TX, 14q-aj003TX, 14q-aj100, 14q-aj101TX, 14q-aj102TX, 14q-aj103TX, 14q-aj104TX, 14q-aj105TX, 14T-AC000, 14Z-AF000, 15-ac000, 15-ac097TU, 15-ac097ur, 15-ac098nia, 15-ac098nx, 15-ac098TU, 15-ac098ur, 15-ac099nia, 15-ac099TU, 15-ac099ur, 15-ac100, 15-ac100nd, 15-ac100nf, 15-ac100ni, 15-ac100nia, 15-ac198TU, 15-ac198TX, 15-ac199ne, 15-ac199nia, 15-ac199TU, 15-ac199TX, 15-ac199ur, 15-ac500, 15-ac501TU, 15-ac502TU, 15-ac503TU, 15-ac504TU, 15-ac505TU, 15-ac506TU, 15-ac600, 15-ac600ur, 15-ac601TU, 15-ac601TX, 15-ac602TU, 15-ac602TX, 15-ac603TU, 15-ac603TX, 15-ac604TU, 15-ac604TX, 15-ac605TU, 15-ac606TU, 15-ac607TU, 15-ac608TU, , 15-af087nw, 15-af091ng, 15-af093ng, 15-af100, 15-af100na, 15-af100nc, 15-af100nf, 15-af100nia, 1 15g-ad000, 15g-ad001TX, 15g-ad002TX, 15g-ad003TX, 15g-ad004TX, 15g-ad005TX, 15g-ad006TX, 15g-ad007TX, 15g-ad100, 15g-ad101TX, 15g-ad102TX, 15g-ad103TX, 15g-ad104TX, 15g-ad105TX, 15g-ad106TX, 15g-ad107TX, 15g-ad108TX, 15g-ad109TX, 15g-ad110TX, 15q-aj000, 15q-aj001TX, 15q-aj002TX, 15q-aj003TX, 15q-aj004TX, 15q-aj005TX, 15q-aj006TX, 15q-aj100, 15q-aj101TX, 15q-aj102TX, 15q-aj103TX, 15q-aj104TX, 15q-aj105TX, 15q-aj107TX, 15q-aj108TX, 15q-aj109TX, 15q-aj110TX, 15q-aj111TX, 15T-AC000, 15T-AC100, 15Z-AF000
